For Homogeneous Mixing and Lubrication

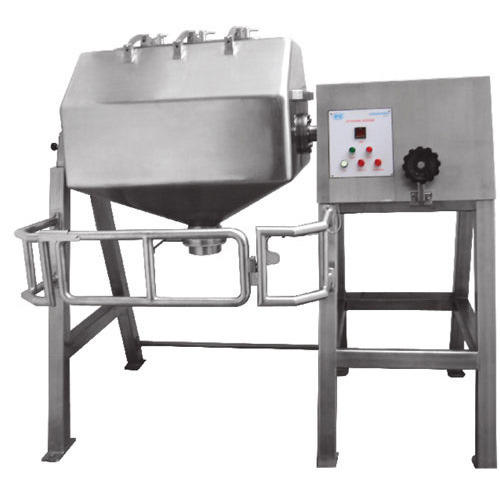

The Octagonal Blender is an essential mixing machine employed for the homogeneous blending and lubrication of dry granules in various industries, including pharmaceuticals, food, chemicals, and cosmetics. Its unique octagonal shape, combined with a slow tumbling action, ensures continuous and efficient movement, resulting in high-quality blending and lubrication of granules.
Send InquiryMaterial Construction: Designed to comply with cGMP regulations, with all contact parts crafted from AISI 316 stainless steel and non-contact parts from AISI 304 stainless steel. Ensures adherence to high-quality standards.
Automatic Operation: Features fully automatic operation based on PLC control, providing precision and control over the blending process. Additionally, flame-proof construction can be incorporated upon request for enhanced safety.
Loading and Unloading: The blender is designed for easy loading and unloading of materials, facilitating a smooth workflow. Cleaning the blender is also a straightforward process.
Capacity Range: Available in different models with capacities ranging from 10 kg to 3400 kg, catering to diverse production needs. The octagonal shape allows processing a large volume of material while occupying less space.
Manual Rotating Facility: Equipped with a manual rotating facility using a hand wheel for inching, providing operational flexibility. The discharge valve ensures easy unloading of materials.
Energy Efficiency: The blender is energy-efficient, offering low power consumption even for larger batch sizes, contributing to cost-effectiveness.
Safety Measures: Includes safety guards made of steel in the standard model and SS 304 polished to a matte finish in the GMP model. A limit switch on the entry door prevents accidental operation.
CIP System: A Cleaning in Place (CIP) system can be provided with a pump as an optional feature, enhancing the cleanliness and hygiene of the equipment.
Documentation: The CGMP model comes with documentation options such as Installation Qualification (IQ), Design Qualification (DQ), Operational Qualification (OQ), and Factory Acceptance Test (FAT) Protocol.
PLC with HMI/SCADA: Enables advanced control and monitoring capabilities.
21 CFR Compliance: Provision and compliance with 21 CFR standards.
VFD (Variable Frequency Drive): Allows control over motor speed for optimized blending.
Direct Drive and Brake Motor: Enhances operational efficiency and control.
FLP Motor and Panel: Flame-proof motor and panel for increased safety.
Actuated Butterfly Valve: Offers automated control over material discharge.
Powder Transfer System: Facilitates the transfer of powders between processes.
The Octagonal Blender stands out as a slow tumbling machine, ensuring the integrity of particle structures during operation. Its design, construction materials, and optional features make it a reliable choice for blending and lubrication processes in pharmaceutical and related industries.
| Sr No | Model | Capacity in Kg | Capacity in Litres | Gross Capacity in Litres | MAIN MOTOR H.P. | Discharge Valve |
| 1 | OCB-10 | 10 Kg | 10 L | 35 L | 0.5 HP | 75 MM |
| 2 | OCB-50 | 25 Kg | 50 L | 80 L | 0.8 HP | 75 MM |
| 3 | OCB-100 | 50 Kg | 100 L | 150 L | 1.0 HP | 100 MM |
| 4 | OCB-300 | 100 Kg | 300 L | 375 L | 1.5 HP | 150 MM |
| 5 | OCB-500 | 165 Kg | 500 L | 600 L | 2.0 HP | 200 MM |
| 6 | OCB-600 | 200 Kg | 600 L | 725 L | 2.0 HP | 200 MM |
| 7 | OCB-750 | 250 Kg | 750 L | 875 L | 3.0 HP | 200 MM |
| 8 | OCB-800 | 265 Kg | 800 L | 950 L | 3.0 HP | 200 MM |
| 9 | OCB-1000 | 335 Kg | 1000 L | 1150 L | 5.0 HP | 250 MM |
| 10 | OCB-1200 | 400 Kg | 1200 L | 1300 L | 5.0 HP | 250 MM |
| 11 | OCB-1500 | 500 Kg | 1500 L | 1700 L | 5.0 HP | 250 MM |
| 12 | OCB-2000 | 650 Kg | 2000 L | 2200 L | 7.5 HP | 300 MM |
| 13 | OCB-2500 | 850 Kg | 2500 L | 2700 L | 7.5 HP | 300 MM |
| 14 | OCB-2800 | 950 Kg | 2800 L | 3500 L | 10.0 HP | 300 MM |
| 15 | OCB-3400 | 1200 Kg | 3400 L | 4000 L | 10.0 HP | 300 MM |
