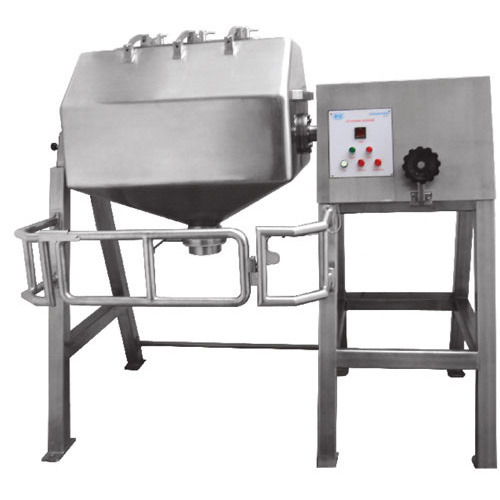

Octagonal Blender

For Homogeneous Mixing and Lubrication

The Octagonal Blender is an essential mixing machine employed for the homogeneous blending and lubrication of dry granules in various industries, including pharmaceuticals, food, chemicals, and cosmetics. Its unique octagonal shape, combined with a slow tumbling action, ensures continuous and efficient movement, resulting in high-quality blending and lubrication of granules.

Send Inquiry

Key Features:

  • Material Construction: Designed to comply with cGMP regulations, with all contact parts crafted from AISI 316 stainless steel and non-contact parts from AISI 304 stainless steel. Ensures adherence to high-quality standards.

  • Automatic Operation: Features fully automatic operation based on PLC control, providing precision and control over the blending process. Additionally, flame-proof construction can be incorporated upon request for enhanced safety.

  • Loading and Unloading: The blender is designed for easy loading and unloading of materials, facilitating a smooth workflow. Cleaning the blender is also a straightforward process.

  • Capacity Range: Available in different models with capacities ranging from 10 kg to 3400 kg, catering to diverse production needs. The octagonal shape allows processing a large volume of material while occupying less space.

  • Manual Rotating Facility: Equipped with a manual rotating facility using a hand wheel for inching, providing operational flexibility. The discharge valve ensures easy unloading of materials.

  • Energy Efficiency: The blender is energy-efficient, offering low power consumption even for larger batch sizes, contributing to cost-effectiveness.

  • Safety Measures: Includes safety guards made of steel in the standard model and SS 304 polished to a matte finish in the GMP model. A limit switch on the entry door prevents accidental operation.

  • CIP System: A Cleaning in Place (CIP) system can be provided with a pump as an optional feature, enhancing the cleanliness and hygiene of the equipment.

  • Documentation: The CGMP model comes with documentation options such as Installation Qualification (IQ), Design Qualification (DQ), Operational Qualification (OQ), and Factory Acceptance Test (FAT) Protocol.

Optional Items/Accessories:

  • PLC with HMI/SCADA: Enables advanced control and monitoring capabilities.

  • 21 CFR Compliance: Provision and compliance with 21 CFR standards.

  • VFD (Variable Frequency Drive): Allows control over motor speed for optimized blending.

  • Direct Drive and Brake Motor: Enhances operational efficiency and control.

  • FLP Motor and Panel: Flame-proof motor and panel for increased safety.

  • Actuated Butterfly Valve: Offers automated control over material discharge.

  • Powder Transfer System: Facilitates the transfer of powders between processes.

The Octagonal Blender stands out as a slow tumbling machine, ensuring the integrity of particle structures during operation. Its design, construction materials, and optional features make it a reliable choice for blending and lubrication processes in pharmaceutical and related industries.

Specifications and Models:

Sr No Model Capacity in Kg Capacity in Litres Gross Capacity in Litres MAIN MOTOR H.P. Discharge Valve
1 OCB-10 10 Kg 10 L 35 L 0.5 HP 75 MM
2 OCB-50 25 Kg 50 L 80 L 0.8 HP 75 MM
3 OCB-100 50 Kg 100 L 150 L 1.0 HP 100 MM
4 OCB-300 100 Kg 300 L 375 L 1.5 HP 150 MM
5 OCB-500 165 Kg 500 L 600 L 2.0 HP 200 MM
6 OCB-600 200 Kg 600 L 725 L 2.0 HP 200 MM
7 OCB-750 250 Kg 750 L 875 L 3.0 HP 200 MM
8 OCB-800 265 Kg 800 L 950 L 3.0 HP 200 MM
9 OCB-1000 335 Kg 1000 L 1150 L 5.0 HP 250 MM
10 OCB-1200 400 Kg 1200 L 1300 L 5.0 HP 250 MM
11 OCB-1500 500 Kg 1500 L 1700 L 5.0 HP 250 MM
12 OCB-2000 650 Kg 2000 L 2200 L 7.5 HP 300 MM
13 OCB-2500 850 Kg 2500 L 2700 L 7.5 HP 300 MM
14 OCB-2800 950 Kg 2800 L 3500 L 10.0 HP 300 MM
15 OCB-3400 1200 Kg 3400 L 4000 L 10.0 HP 300 MM
