Coating Pan

Coating Pan

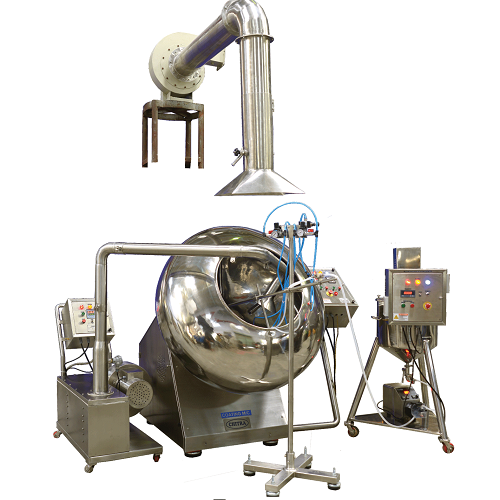

Coating Pan (Conventional)

Tablet Coating Machines play a crucial role in various industries such as pharmaceuticals, confectionery, food, and more. This Machine is designed for coating tablets, pills, and other products, providing a uniform and precise coating.

Send Inquiry

Key Features:

  • cGMP Design: Compliant with Current Good Manufacturing Practices, ensuring quality standards.

  • High-Quality Construction: All contact parts made of AISI 316/316L/304 for durability and hygiene. Non-contact parts made of AISI 304.

  • Conventional and Automatic Coating Systems: Conventional coating for manual film coating and sugar coating. Automatic Coating System consists of a solution holding tank, peristaltic pump, atomized spraying gun, adjustable stand for spraying gun, and an automatic electro-pneumatic controls panel.

  • Fabricated Structure: Designed with a fabricated structure fitted with an SS enclosure. Simple, cleanable outside covering. Mounted on anti-vibration pads for stability.

  • Spraying System: Atomized spray nozzle. High-Precise Peristaltic Pump. Adjustable Stand for Spraying Gun. Solution Holding Tank. Automatic Controls System.

  • Pan Drive and Hot Air Blowing: Closed powerful pan drive with reduction gearbox and variable speed pulley. Movable hot air blowing system with electric heater.

  • Easy Maintenance and Replacement: Easy-to-replace polishing pan and other size coating pans available.

  • Multiple Nozzles and Solution Tanks: The system is available with one or more spraying nozzles, depending on the coating pan size. Solution holding tanks with different capacities and options with or without stirrers.

  • Temperature Control: Temperature controller provided for precise control during the coating process.

  • Anti-Vibrating Unit: Ensures proper floor level without the need for additional foundation requirements.

The Tablet Coating Machine offers advanced features for efficient and precise coating, making it an indispensable tool in pharmaceutical and related industries. It ensures compliance with quality standards and facilitates user-friendly operation.

Specifications and Models:

Sr No Model PAN Size Loading Capacity in Kg Pan Angle RPM MAIN MOTOR H.P. Blower Heater
1 CP-24 24 Inch 15 Kg 30 Degree Please contact us for more details
2 CP-30 30 Inch 45 Kg 30 Degree
3 CP-36 36 Inch 80 Kg 30 Degree
4 CP-42 42 Inch 100 Kg 30 Degree
5 CP-48 48 Inch 150 Kg 30 Degree
6 CP-60 60 Inch 210 Kg 30 Degree
