Efficient Solid-Liquid Separation for Varied Industries

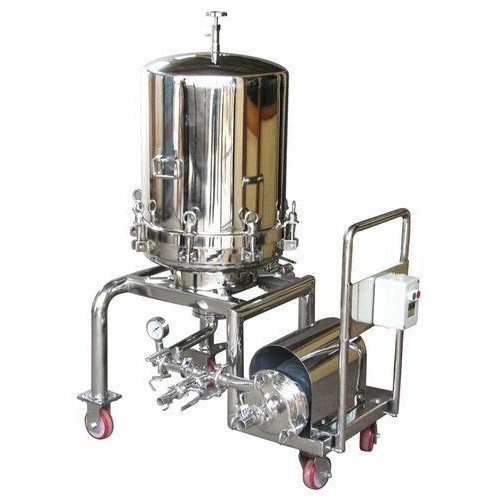

Our Sparkler Filter Press, also known as the Zero Hold Up Filter Press, Sugar Syrup Filter Press, Centrifugal Sparkler Filter Press, Horizontal Sparkler Filter Press, and Vertical Sparkler Filter Press, is a robust and compact solid-liquid separation device. Employing the principle of pressure feeding, this filter press offers high efficiency and serves as an excellent dewatering solution for separating solids from liquid slurries, resulting in a compressed cake.
Send InquirycGMP Design: Crafted in compliance with current Good Manufacturing Practices (cGMP), ensuring high-quality standards for the pharmaceutical, bulk drugs, distilleries, beverages, and other industries.
Complete Filtration without Hold Up: The filter press ensures the complete filtration of batches without any hold-up due to the reverse flow of liquid. It efficiently separates solids, allowing only clear filtrate to pass through.
Enclosed Cake Holding: Solids, cake, and filtered substances remain entirely enclosed, facilitating filtration of toxic, hazardous, and explosive liquids. This design prioritizes safety.
No Contamination: The design prevents contamination of the internal surface of the shell, ensuring the purity of the filtered liquids.
Insulated Shell Model: An optional feature includes an insulated shell model for enhanced temperature control during the filtration process.
Hydraulic Lifting of Shell: Another optional feature is the hydraulic lifting of the shell, providing convenience and efficiency during maintenance and cleaning operations.
Top Dome Structure: The top dome structure guarantees fast and easy removal of the cartridge assembly and cleaning of the cake.
Skid Type Unit: The filter press is designed as a skid-type unit with castor wheels, ensuring mobility and ease of relocation.
| Sr. No. | Model | Dia Of Plate | No of Plates | Filtration Area M² | Cake Holding Capacity | Flow rate | Pump Size | Motor |
| 1 | CFP-8 | 8 Inch | 6 Plates | 0.217 m² | 4.5 Ltrs | 600 Liters / hour | 0.5" | 1 HP |
| 8 Plates | 0.279 m² | 5.5 Ltrs | 800 Liters / hour | 0.5" | 1 HP | |||
| 2 | CFP-14 | 14 Inch | 8 Plates | 0.819 m² | 22.5 Ltrs | 1500 Liters / hour | 1" | 2 HP |
| 10 Plates | 1.001 m² | 27.5 Ltrs | 1700 Liters / hour | 1" | 2 HP | |||
| 12 Plates | 1.183 m² | 32.5 Ltrs | 1900 Liters / hour | 1" | 2 HP | |||
| 3 | CFP-18 | 18 Inch | 10 Plates | 1.65 m² | 44 Ltrs | 4000 Liters / hour | 1.5" | 3 HP |
| 12 Plates | 1.95 m² | 52 Ltrs | 4600 Liters / hour | 1.5" | 3 HP | |||
| 15 Plates | 2.4 m² | 64 Ltrs | 5500 Liters / hour | 1.5" | 3 HP | |||
| 24 Plates | 3.75 m² | 100 Ltrs | 8200 Liters / hour | 1.5" | 3 HP | |||
| 4 | CFP-24 | 24 Inch | 15 Plates | 4.192 m² | 136 Ltrs | 7000 Liters / hour | 2" | 5 HP |
| 18 Plates | 5.035 m² | 162 Ltrs | 8500 Liters / hour | 2" | 5 HP | |||
| 24 Plates | 6.625 m² | 213 Ltrs | 12500 Liters / hour | 2" | 5 HP | |||
| 5 | CFP-33 | 33 Inch | 7 Plates | 4.176 m² | 118 Ltrs | 7000 Liters / hour | 2.5" | 5 HP |
| 10 Plates | 5.736 m² | 163 Ltrs | 10000 Liters / hour | 2.5" | 5 HP | |||
| 14 Plates | 7.821 m² | 222 Ltrs | 13500 Liters / hour | 2.5" | 5 HP | |||
| 22 Plates | 12.5 m² | 345 Ltrs | 20000 Liters / hour | 2.5" | 5 HP |
