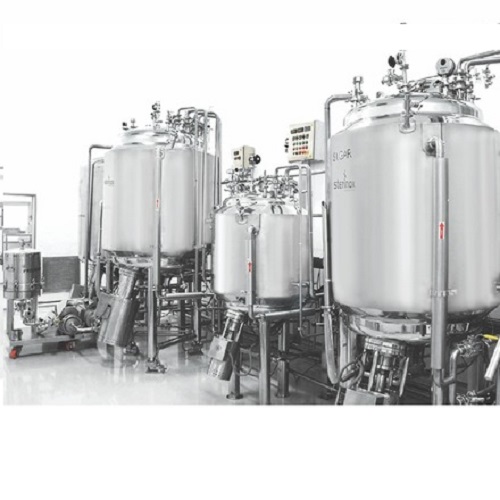

Liquid Syrup Manufacturing Plant
Our company specializes in manufacturing top-of-the-line equipment for the pharmaceutical industry, and our Liquid Syrup Manufacturing Plant stands out for its exceptional performance and compliance with the highest quality standards. This plant is designed to produce a variety of oral dose liquids, including oral suspensions, oral solutions, oral drops, emulsions, and mixtures.
Send Inquiry
Hygienic Processing: Designed for extreme hygiene to ensure the product is free from contamination. High-quality materials for easy cleaning and maintenance.
Minimal Manual Handling: Minimizes manual handling, reducing the risk of contamination and human error. Vacuum or transfer pumps used for careful material transfer.
cGMP Design: Complies with Current Good Manufacturing Practice (cGMP) guidelines for high-quality and safe products.
Product Contact AISI 316L: Contact parts made of AISI 316L stainless steel for corrosion resistance and easy cleaning.
Flexible Operation: Operates under different conditions such as atmospheric pressure, vacuum, or pressure. Jacket available for heating or cooling to ensure the right processing temperature.
Pressure Range: Vessel inside pressure: -1 to +2 bar. Heating jacket pressure: -1 to +6 bar.
Heating Options: Heating by steam or hot water circulation for even and efficient heating.
Thermal Insulation: Thermal insulation minimizes heat loss, ensuring precise processing temperatures.
Polished Internal Surface: Internal surfaces can be mechanically or electro-polished for easy cleaning and prevention of product sticking.
Cover Options: Welded, flanged, or hinged type cover for product protection during processing.
CIP and SIP: Integrated Cleaning in Place (CIP) connections for easy cleaning. Sterilizing in Place (SIP) option for a microorganism-free product.
Portable Execution: Designed to be portable for easy relocation.
Validation Protocols: Designed with validation protocols and instrumentation celebrations for optimal operation.
Automation Options: Option of PLC, HMI-based model. 21 CFR Part 11 compliant SCADA package available on demand.
Sugar Charging/Transfer System.
Sugar Melting Vessel with mixing stirrer.
Basket Filter & Zero Hold Up Filter Press.
Syrup Manufacturing Vessel with stirrer.
Inline Homogenizer.
Storage Tank with stirrer.
Interconnecting pipeline.
Transfer Pumps.
Integrated automatic control panel.
Working Platform.
Capacities range from 50 liters to 10,000 liters.
Our Liquid Syrup Manufacturing Plant is an ideal solution for pharmaceutical and drug industries, ensuring the production of high-quality oral liquids with minimal manual handling and maximum efficiency. Choose our plant for a reliable and advanced manufacturing process.
