For Efficient and Gentle Mixing

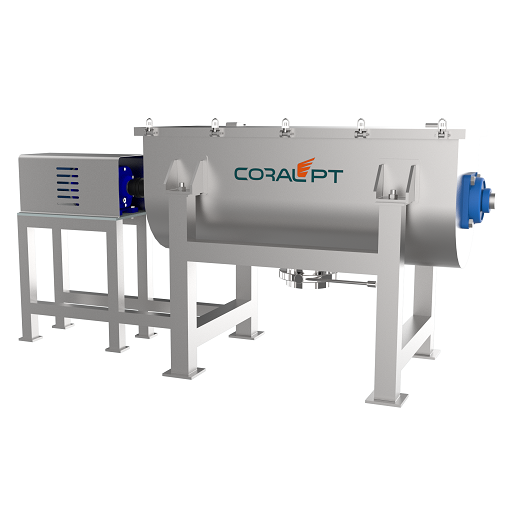

A paddle blender is a specialized blending equipment designed for mixing powders, granules, and solid materials in various industries, including food, pharmaceuticals, and chemicals. It employs a flat paddle-shaped agitator within a horizontal, rectangular mixing chamber, offering unique advantages in terms of blending efficiency and material handling. Here are the key features and characteristics of a paddle blender:
Send Inquiry
cGMP Design: The paddle blender is designed in compliance with cGMP (Current Good Manufacturing Practices), ensuring that it meets the highest standards for quality and safety in pharmaceutical manufacturing.
Material Construction: The contact parts of the blender are constructed from AISI 316 stainless steel, providing corrosion resistance and adherence to strict quality standards. Non-contact parts are made of AISI 304 stainless steel.
Fully Automatic Operation: The blender operates fully automatically, controlled by a Programmable Logic Controller (PLC). This feature enhances operational control and efficiency in the blending process.
Flame-Proof Construction: The option for flame-proof construction can be provided upon request, making the blender suitable for use in environments where safety is a critical concern.
Adaptability to Batch or Continuous Mixing: The paddle blender is versatile and can adapt to both batch and continuous mixing operations, providing flexibility in manufacturing processes.
Heating or Cooling Jacket: The blender can be equipped with a heating or cooling jacket as per process requirements, allowing for temperature control during the blending process.
Choppers: Choppers, available as a Delumper or Fine Grinder, can be integrated into the blender for additional material processing capabilities.
Hinged Cover and Dependable Discharge Outlet: The blender features a hinged cover for easy access and a dependable discharge outlet. The discharge can be controlled manually with a lever or hand wheel-operated slide gate valve.
Optional Scale Hoppers: Scale hoppers are available as optional features, providing additional functionality for specific material handling needs.
Fast and Easy Cleaning: The design facilitates fast and easy cleaning. The entire ribbon assembly is removable as a unit, streamlining maintenance processes.
Shaft Seal: The blender is equipped with a shaft seal, featuring three rows of packing housed in a standard gland follower stuffing box. Purged and lubricated seals, as well as mechanical seals, are also available.
CIP System: A Clean-In-Place (CIP) system is provided with a pump as an optional feature, ensuring convenient and efficient cleaning of the blender.
CGMP Model with Documentation: The CGMP model comes with comprehensive documentation, including Installation Qualification (IQ), Design Qualification (DQ), Performance Qualification (PQ), and Operational Qualification (OQ), providing a complete quality assurance package.
The paddle blender's efficient and gentle mixing makes it a valuable asset in industries where maintaining the integrity of delicate materials is crucial. Its adaptability, advanced features, and compliance with industry standards contribute to its effectiveness in various manufacturing processes.
| Sr. No. | Model | Gross Capacity(L) | Working Capacity (L) | RPM | MAIN MOTOR H.P. |
| 1 | CPT/PDB-150 | 150 L | 100 L | 15/30 | 3 - 5 HP |
| 2 | CPT/PDB-500 | 500 L | 325 L | 15/30 | 5 - 5 HP |
| 3 | CPT/PDB-1000 | 1000 L | 650 L | 15/30 | 7.5 - 10HP |
| 4 | CPT/PDB-2000 | 2000 L | 1300 L | 15/30 | 10 - 15 HP |
| 5 | CPT/PDB-3000 | 3000 L | 2000 L | 15/30 | 20 - 25 HP |
| 6 | CPT/PDB-4000 | 4000 L | 2600 L | 15/30 | 25 -30 HP |
| 7 | CPT/PDB-5000 | 5000 L | 3250 L | 15/30 | 30 -40 HP |
| 8 | CPT/PDB-7500 | 7500 L | 5000 L | 15/30 | 40 - 50 HP |
| 9 | CPT/PDB-10000 | 10000 L | 6500 L | 15/30 | 60 - 75 HP |
| 10 | CPT/PDB-12000 | 12000 L | 7800 L | 15/30 | 75 - 100 HP |
