for Efficient Paste Preparation

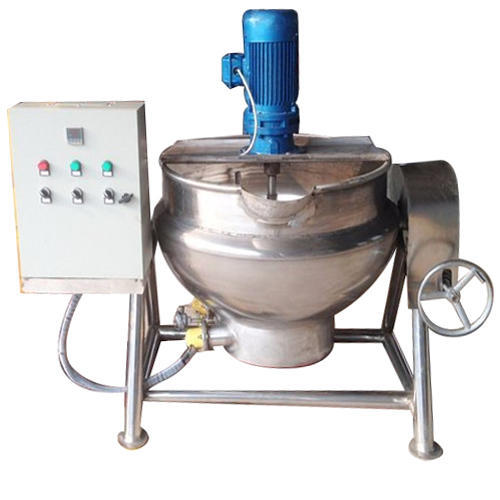

The Paste Kettle (PK) is a specialized tilting kettle designed for the preparation and melting down of various pastes, finding applications in industries such as chemicals, foods, cosmetics, and pharmaceuticals. Its unique tilting arrangement simplifies product discharge, driven by a top-mounted motor and gearbox assembly.
Send Inquiry
Hemispherical Design: Facilitates proper mixing of paste for optimal consistency.
Jacketed for Heating: Equipped with a heating element via steam (provided by the customer) for efficient heating.
Insulation Option: Optional outer jacket for insulation to enhance thermal efficiency.
Bottom Discharge: Features a butterfly valve for easy and controlled product discharge.
Mirror Finish: AISI 316 for contact parts and AISI 304 for non-contact parts, guaranteeing durability and hygiene.
Anchor Type Impeller: Designed for effective mixing of paste materials.
SS-316 Contact Parts: All contact parts made from high-quality SS-316 for corrosion resistance.
SS-304 Non-Contact Parts: Non-contact parts constructed from durable SS-304.
Central SS 304 Pillar: Provides structural integrity and serves as the mounting point for the operating panel.
Simplified Construction: Ensures ease of operation and maintenance.
Versatile Heating Options: Supports steam or electric heating based on user requirements.
Stirrer Integration: Optional stirrer/anchor with forward and reverse movement for enhanced mixing.
Temperature Indication: Optional temperature indication for precise control.
Flame-Proof Construction: Ensures safety in operation.
Built-in Stirrer Arrangement: Equipped with lifting and lowering device for efficient mixing.
Capacity Range: Available in capacities from 10 Ltrs to 2000 Ltrs to meet diverse production needs.
The Paste Kettle is offered in various models, providing flexibility in terms of volume, working parameters, and energy consumption, making it a reliable and versatile solution for paste preparation across industries.
| Sr No | Model | CPT/PK-100 | CPT/PK-200 | CPT/PK-300 | CPT/PK-400 | CPT/PK-500 |
| 1 | Volume (in Litres) | 100 L | 200 L | 300 L | 400 L | 500 L |
| 2 | Working Temp. (Degree C) | ≤100 degree C (material in Bowl) & ≤140 degree C (jacket) | ||||
| 3 | Jacketed Pressure (Mpa) | ≤0.3(jacket) | ||||
| 4 | Evaporation Capacity (Kg/Hr) | 45 Kg/hr | 80 Kg/hr | 100 Kg/hr | 140 Kg/hr | 160 Kg/hr |
| 5 | Heat Area (M2) | .70 M2 | .95 M2 | 1.20 M2 | 1.80 M2 | 2.20 M2 |
| 6 | Energy Consumption (Kg/Hr) | 44 Kg/hr | 55 Kg/hr | 72 Kg/hr | 90 Kg/hr | 110 Kg/hr |
| 7 | Motor Power (Kw/HP) | .37 Kw | .55 Kw | .55 Kw | 1.10 Kw | 1.10 Kw |
For Models Above 500L, Please contact our Team...
