Unlock Precision Mixing with CoralPT's Plough Shear Mixer (PSM)
Empower your manufacturing processes with the versatile Plough Shear Mixer (PSM) from CoralPT. This mixer, also known as Ploughshare, stands as a cornerstone in industries handling powder, granulates, grains, fragile materials, viscous products, and cement concrete materials. Its adaptability and efficiency make it an invaluable asset in various sectors.
Send Inquiry

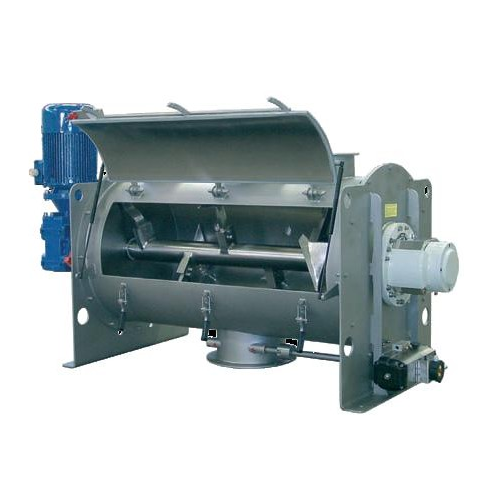

Horizontal Mixing Excellence: The PSM features a horizontal, cylindrical container enclosing plough-shaped mixing elements mounted on a horizontal shaft. This design facilitates optimal mixing and ensures uniform blending of materials.
Chopper-Assisted Mixing: The mixing effect is enhanced by separately driven, high-speed rotating choppers or multiple choppers. In collaboration with plough-shaped mixing elements, they disperse lumps, agglomerations, or pasty additives with powdery carriers.
Customizable Features: The PSM can be tailored to specific requirements with options such as liquid feeding devices, jackets for heating/cooling, varied seals, vacuum suitability for drying, and a range of construction materials (mild-steel, stainless steel, Hastelloy, Monels) to suit diverse process materials.
Dry Powder Mixing: Ideal for applications in food flavoring/additives, cosmetics, pharmaceuticals, cement, powdered rubber, and more.
Paste Mixing: Perfect for biscuit creams, dough, PVC pastes, sugar/marzipan paste, tile adhesives, and grouts, among others.
Wet Slurries Mixing: Efficiently handles filter cake re-slurrying, dough, fiber glass resin putty, and more.
Wet Granulation, Liquid Coating, Fat Incorporation, Vacuum Drying, Hot Air Drying: Offers versatility across a spectrum of processes.
Mixing Element Variety: Choose from plough and paddle mixing elements, each catering to specific material characteristics.
Construction Material Options: Available in MS, SS 304, SS 316, and GMP-compliant materials, ensuring compatibility with diverse applications.
Continuous Operation: Designed for seamless and uninterrupted operation, enhancing overall production efficiency.
Versatile Operations: Supports vacuum drying and deaerating, heating/cooling jacket, spray nozzle, dripping pipe, feeding, and discharging.
Robust Drive System: Equipped with a reliable drive system for consistent and dependable performance.
Extended Height Bases: Provides stability and ease of operation with extended height bases.
Revolutionize your mixing processes with CoralPT's Plough Shear Mixer. Contact us today to explore how this cutting-edge solution can elevate the precision and efficiency of your manufacturing operations.
| Sr. No. | Model | Gross Capacity(L) | Working Capacity (L) | Motor Power | Chopper Motor | RPM (Motor & Chopper) |
| 1 | PSM-130 | 130 | 32.5L-91L | 3Kw | 1.5 Kw x 2 | 101 RPM (Shaft) 1440 RPM (Chopper) |
| 2 | PSM-300 | 300 | 75L-210L | 4Kw | 1.5 Kw x 2 | 85 RPM (Shaft) 1440 RPM (Chopper) |
| 3 | PSM-600 | 600 | 150L-420L | 7.5 Kw | 1.5 Kw x 2 | 85 RPM (Shaft) 1440 RPM (Chopper) |
| 4 | PSM-1000 | 1000 | 250L-700L | 11 Kw | 4 Kw x 2 | 85 RPM (Shaft) 1440 RPM (Chopper) |
| 5 | PSM-1200 | 1200 | 300L-840L | 15 Kw | 4 Kw x 2 | 85 RPM (Shaft) 1440 RPM (Chopper) |
| 6 | PSM-1600 | 1600 | 400L-1120L | 15 Kw | 4 Kw x 2 | 85 RPM (Shaft) 1440 RPM (Chopper) |
| 7 | PSM-2000 | 2000 | 500L-1400L | 18.5 Kw | 4 Kw x 3 | 85 RPM (Shaft) 1440 RPM (Chopper) |
| 8 | PSM-3000 | 3000 | 750L-2100L | 18.5 Kw | 4 Kw x 4 | 57 RPM (Shaft) 1440 RPM (Chopper) |
| 9 | PSM-4000 | 4000 | 1000L-2800L | 22 Kw | 4 Kw x 4 | 57 RPM (Shaft) 1440 RPM (Chopper) |
| 10 | PSM-6000 | 6000 | 1500L-4200L | 30 Kw | 4 Kw x 4 | 57 RPM (Shaft) 1440 RPM (Chopper) |
| 11 | PSM-8000 | 8000 | 2000L-5600L | 45 Kw | 4 Kw x 4 | 57 RPM (Shaft) 1440 RPM (Chopper) |
| 12 | PSM-10000 | 10000 | 2500L-7000L | 55 Kw | 5.5 Kw x 5 | 42 RPM (Shaft) 1440 RPM (Chopper) |
| 13 | PSM-12000 | 12000 | 3000L-8400L | 55 Kw | 5.5 Kw x 5 | 30 RPM (Shaft) 1440 RPM (Chopper) |
| 14 | PSM-16000 | 16000 | 4000L-11200L | 75 Kw | 5.5 Kw x 5 | 30 RPM (Shaft) 1440 RPM (Chopper) |
| 15 | PSM-20000 | 20000 | 5000L-14000L | 90 Kw | 5.5 Kw x 5 | 30 RPM (Shaft) 1440 RPM (Chopper) |
