Efficient Mixing for Superior Granulation

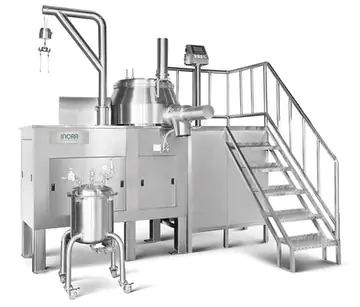

Our Rapid Mixer Granulator / High Shear Mixer is a robust solution designed for achieving excellent mixing and consistent granules, ensuring lower operating costs and higher productivity. With a focus on better mixing and precise control of granule size, the RMG delivers faster tableting speeds, improved quality, and minimal rejections. This versatile unit serves various purposes, including high-speed dispersion of dry powders, aqueous or solvent granulation, and efficient production of effervescent products and melts palletization.
Send Inquiry
cGMP Design: Compliant with Current Good Manufacturing Practices, ensuring quality standards.
Material Quality: Contact parts made of AISI 316, non-contact parts made of AISI 304 for durability and hygiene.
Wide Capacity Range: Models available from 1 Kg. to 1000 Kg. working capacity, catering to diverse production needs.
Fully Automatic Operation: PLC control for precise and efficient operation, reducing manual intervention.
Impeller Lifting Options: Pneumatically Operated Bottom Impeller Lifting for easy cleaning.Electromechanical impeller lifting and removing mechanism.
Hydraulically Operated Lid Lifting: Facilitates easy and efficient access to the granulation chamber for loading and unloading materials.
Flameproof Construction: Available upon request for enhanced safety in specific environments.
Efficient Granulation Process: Less wetting and more rapid drying.Consistent quality in each batch.
Dual Speed Impeller And Chopper: Enhances mixing efficiency and granule uniformity.
Simplified Construction: Jacketed models for temperature control.Vacuum / Gravity Charging options.Binder spraying systems for precise application. CIP / WIP systems for easy cleaning.Vacuum drying for enhanced efficiency.
Arrangement For Binding Spray: Facilitates the addition of binding agents for granulation.
Underdriven Co-Mill: Includes sieves ranging from 0.3MM to 5MM for effective size reduction and granulation.
CGMP Model With Documentation (IQ, DQ, PQ, OQ): Optional comprehensive documentation for regulatory compliance.
The Rapid Mixer Granulator is a reliable and efficient solution for granulation processes, ensuring superior mixing and granule quality across various industries.
| Sr No | Model | Gross Capacity(L) | Working Capacity (L) | Impeller Motor & Gear Box | Chopper Motor |
| 1 | RMG-Mini (Lab Scale with Interchangeable Bowls) |
3 | 2 | 2 HP 2880 RPM | 1.5/2 H.P, 1440/2880 RPM |
| 2 | RMG-10 (Lab Scale with Interchangeable Bowls) |
10 | 8 | 2 HP 2880 RPM, 4" Ratio 10:1 | 1.5/2 H.P, 1440/2880 RPM |
| 3 | RMG-50 | 50 | 40 | 3/5 H.P, 750/1440 RPM, 4" Ratio 10:1 | 1.5/2 H.P, 1440/2880 RPM |
| 4 | RMG-75 | 75 | 60 | 5/10 H.P, 750/1440 RPM, 5" Ratio 10:1 | 2/3 H.P, 1440/2880 RPM |
| 5 | RMG-150 | 150 | 120 | 7.5/15 H.P, 750/1440 RPM, 5" Ratio 10:1 | 3/5 H.P, 1440/2880 RPM |
| 6 | RMG-300 | 300 | 240 | 25/30 H.P, 750/1440 RPM, 7" Ratio 10:1 | 3/5 H.P, 1440/2880 RPM |
| 7 | RMG-600 | 600 | 480 | 30/40 HP, 750/1440 RPM, 9” Ratio 10:1 | 5/7.5 H.P, 1440/2880 RPM |
| 8 | RMG-750 | 750 | 600 | 30/40 HP, 750/1440 RPM, 9” Ratio 10:1 | 5/7.5 H.P, 1440/2880 RPM |
| 9 | RMG-1000 | 1000 | 800 | 60/75 HP, 750/1440 RPM, 12” Ratio 10:1 | 10/15 H.P, 1440/2880 RPM |
| 10 | RMG-1200 | 1200 | 960 | 60/75 HP, 750/1440 RPM, 12” Ratio 10:1 | 10/15 H.P, 1440/2880 RPM |
| 11 | RMG-1400 | 1400 | 1120 | 75/100 HP, 750/1440 RPM, 12” Ratio 10:1 | 10/15 H.P, 1440/2880 RPM |
| 12 | RMG-2000 | 2000 | 1600 | 75/100 HP, 750/1440 RPM, 12” Ratio 10:1 | 15/20 H.P, 1440/2880 RPM |
| 13 | RMG-2500 | 2500 | 2000 | 75/100 HP, 750/1440 RPM, 12” Ratio 10:1 | 15/20 H.P, 1440/2880 RPM |
